Maximize Your Crushing Efficiency with High-Quality Crusher Wear Parts!

Select the right wear part solution for your demands

Selecting the right wear part solution for a crusher is crucial for ensuring its optimal performance and longevity. The wear parts of a crusher are the components that come into contact with the material being crushed and are subject to wear and tear. To select the right wear part solution for a crusher, several factors need to be considered, such as the type of crusher, the material being crushed, the operating conditions, and the desired outcome.

1. Type of Crusher. Different types of crushers require different wear parts solutions. For example, a jaw crusher requires a different type of wear part solution than a cone crusher or a vertical shaft impactor (VSI). It’s essential to understand the type of crusher being used and the type of wear parts that are compatible with it.
2. Material Being Crushed. The material being crushed also plays a crucial role in selecting the right wear part solution. Different materials have different abrasiveness and hardness, which affect the wear and tear of the crusher’s wear parts. For example, crushing abrasive materials such as granite, sandstone, or quartzite requires to wear parts with a higher resistance to wear and tear than crushing softer materials such as limestone or clay.
3. Operating Conditions. The operating conditions of the crusher also affect the wear and tear of its wear parts. These conditions include feed size, feed rate, moisture content, and temperature. For example, high moisture content can cause wear parts to corrode quickly, while the high temperatures can cause them to deform or become brittle. It’s important to consider the operating conditions and select wear parts that are suitable for them.
4. Desired Outcome. The desired outcome of the crushing process is also an essential factor in selecting the right wear part solution. For example, if the goal is to produce finer particles, wear parts with a higher level of precision are needed. Alternatively, if the goal is to increase the crusher’s throughput, wear parts with a higher level of durability may be required.
5. Quality of the Wear Parts. The quality of the wear parts is crucial to the crusher’s performance and longevity. High-quality wear parts are designed and manufactured to withstand the wear and tear of the crushing process, resulting in reduced downtime, increased productivity, and lower operating costs. It’s essential to select wear parts from reputable manufacturers with a proven track record of delivering high-quality products.

Wear Parts Series

Standard Material Crusher Wear Parts

The standard materials for crusher wear parts can vary depending on the type of wear part, the crusher type, and the application. However, some common materials used for crusher wear parts include:

1. Manganese Steel: Manganese steel is a high-strength material known for its excellent wear resistance. It is commonly used for crusher jaws, cones, and mantles, as well as impact crusher blow bars.
2. Chrome White Iron: Chrome white iron is a high-chromium alloy that is extremely wear-resistant. It is commonly used for impact crusher wear parts, including blow bars and impact plates.
3. Martensitic Steel: Martensitic steel is a type of alloy steel that is known for its high toughness and resistance to wear and impact. It is commonly used for impact crusher wear parts, including blow bars and impact plates.

Qiming Casting supplies standard manganese steel (Mn14, Mn18, and Mn22) cone crusher liners and crusher jaw plates for popular cone and jaw crushers; Qiming Casting also supplies standard chrome steel crusher blow bars and impact plates for popular impact crushers.

Cemented Carbide Inlay Crusher Wear Parts

Qiming Casting has developed a cemented carbide inlay wear part that typically provides up to double wear life compared to a conventional manganese wear part.

The cemented carbide inlay wear parts are eco-friendly and reduce the consumption of non-recyclable materials such as backing compounds and sand molding. By doubling the wear life, we are contributing to a low-carbon society and minimizing the impact across the entire product life cycle, from manufacturing to recycling.

Our cemented carbide inlay wear parts offering:

• TIC inlay wear parts
• Ceramic inserts wear parts

Wear Parts By Crusher

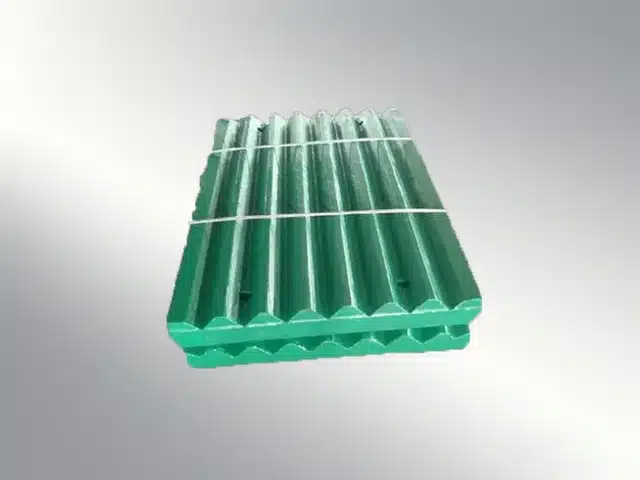

Wear Parts For Jaw Crusher

Jaw crusher wear parts are components that are designed to protect the jaw crusher from wear and damage caused by the material being crushed. These wear parts are critical components in the crushing process and are designed to increase the lifespan of the jaw crusher.

Here are some common types of jaw wear parts:

1. Jaw Plates: Jaw plates are the main wear parts of jaw crushers and are fixed directly to the jaw frame. They are designed to protect the jaw crusher from the abrasive material being crushed and to provide a gripping surface for the material to be crushed. Jaw plates can be made of various materials, including manganese steel, chrome steel, and tungsten carbide.
2. Cheek Plates: Cheek plates are located on either side of the jaw crusher and are designed to protect the side of the jaw crusher from wear and damage caused by the material being crushed. They are typically made of manganese steel or other wear-resistant materials.
3. Toggle Plate: The toggle plate is a component that connects the moving jaw to the pitman, which is the main moving part in the jaw crusher. It is designed to absorb the shock and vibration of the moving jaw and to ensure that the jaw crusher operates smoothly. Toggle plates are typically made of high-strength steel.
4. Wedges: Wedges are used to adjust the gap between the jaw plates and to maintain the correct crushing angle. They are typically made of a high-strength material, such as manganese steel or chrome steel.

Learn more about this wear parts

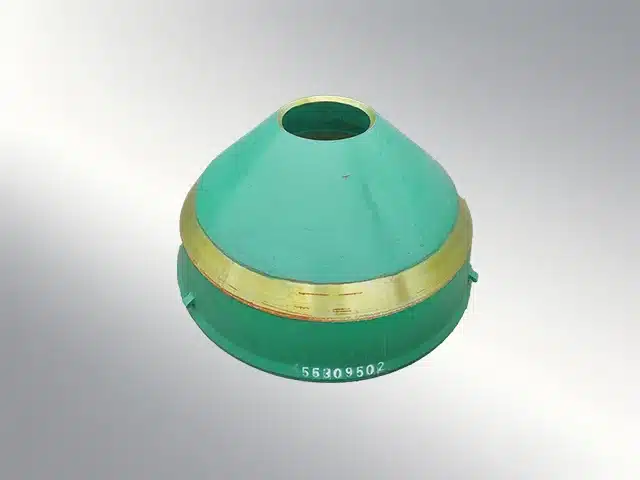

Wear Parts For Cone Crusher

Cone crusher wear parts are components that are designed to protect the cone crusher from wear and damage caused by the material being crushed. These wear parts are critical components in the crushing process and are designed to increase the lifespan of the cone crusher.

Here are some common types of cone wear parts:

1. Mantles: Mantles are the main wear parts of cone crushers and are fixed directly to the cone crusher’s main shaft. They are designed to protect the cone crusher from the abrasive material being crushed and to provide a gripping surface for the material to be crushed. Mantles can be made of various materials, including manganese steel, chrome steel, and tungsten carbide.
2. Concaves: Concaves are located on the top of the cone crusher and are designed to protect the cone crusher from wear and damage caused by the material being crushed. They are typically made of manganese steel or other wear-resistant materials.
3. Eccentric Bushings: Eccentric bushings are critical components in cone crushers, as they support the eccentric shaft and enable it to rotate smoothly. They are typically made of high-quality steel or other durable materials.

Learn more about cone wear parts

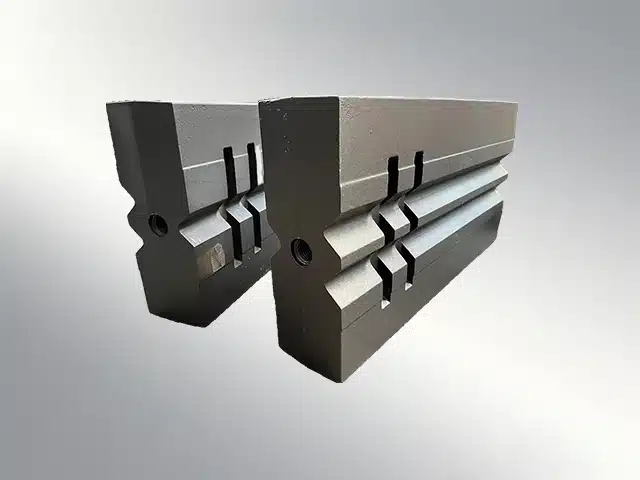

Wear Parts For Impact Crusher

Impact crusher wear parts are components that are designed to protect the impact crusher from wear and damage caused by the material being crushed. These wear parts are critical components in the crushing process and are designed to increase the lifespan of the impact crusher.

Here are some common types of impact wear parts:

1. Blow Bars: Blow bars are the main wear parts of impact crushers and are fixed directly to the rotor. They are designed to protect the impact crusher from the abrasive material being crushed and to provide a gripping surface for the material to be crushed. Blow bars can be made of various materials, including manganese steel, chrome steel, and ceramic.
2. Impact Plates: Impact plates are located on the top of the impact crusher and are designed to protect the impact crusher from wear and damage caused by the material being crushed. They are typically made of manganese steel or other wear-resistant materials.
3. Side Liners: Side liners are located on the sides of the impact crusher and are designed to protect the impact crusher from wear and damage caused by the material being crushed. They are typically made of manganese steel or other wear-resistant materials.
4. Breaker Plates: Breaker plates are located on the bottom of the impact crusher and are designed to protect the impact crusher from wear and damage caused by the material being crushed. They are typically made of manganese steel or other wear-resistant materials.

Learn more about impact wear parts

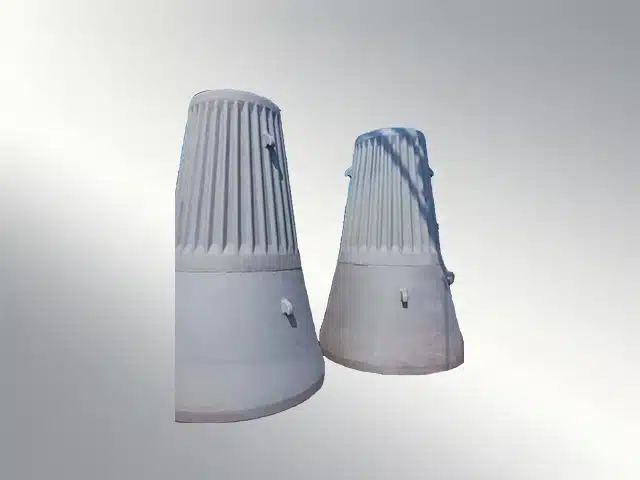

Wear Parts For Gyratory Crusher

Gyratory crusher wear parts are components that are designed to protect the gyratory crusher from wear and damage caused by the material being crushed. These wear parts are critical components in the crushing process and are designed to increase the lifespan of the gyratory crusher.

Here are some common types of gyratory wear parts:

1. Mantles: Mantles are the main wear parts of gyratory crushers and are fixed directly to the gyratory crusher’s main shaft. They are designed to protect the gyratory crusher from the abrasive material being crushed and to provide a gripping surface for the material to be crushed. Mantles can be made of various materials, including manganese steel, chrome steel, and tungsten carbide.
2. Concaves: Concaves are located on the top of the gyratory crusher and are designed to protect the gyratory crusher from wear and damage caused by the material being crushed. They are typically made of manganese steel or other wear-resistant materials.
3. Spider Bushings: Spider bushings are critical components in gyratory crushers, as they support the spider and enable it to rotate smoothly. They are typically made of high-quality steel or other durable materials.
4. Eccentric Bushings: Eccentric bushings are critical components in gyratory crushers, as they support the eccentric shaft and enable it to rotate smoothly. They are typically made of high-quality steel or other durable materials.

Learn more about gyratory wear parts

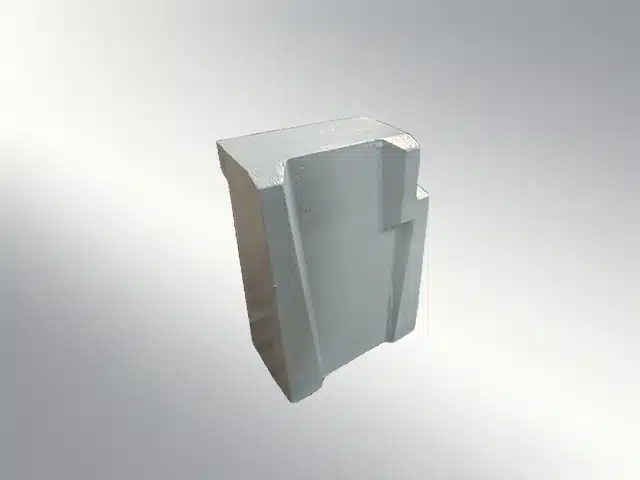

Wear Parts For VSI Crusher

VSI (vertical shaft impact) crusher wear parts are components that are designed to protect the VSI crusher from wear and damage caused by the material being crushed. These wear parts are critical components in the crushing process and are designed to increase the lifespan of the VSI crusher.

Here are some common types of VSI wear parts:

1. Rotor Tips: Rotor tips are the main wear parts of VSI crushers and are fixed directly to the rotor. They are designed to protect the VSI crusher from the abrasive material being crushed and to provide a gripping surface for the material to be crushed. Rotor tips can be made of various materials, including tungsten carbide, chrome steel, and ceramic.
2. Wear Plates: Wear plates are located on the top and bottom of the VSI crusher and are designed to protect the VSI crusher from wear and damage caused by the material being crushed. They are typically made of manganese steel or other wear-resistant materials.
3. Anvils: Anvils are located on the top and bottom of the VSI crusher and are designed to shape the material being crushed. They are typically made of high-quality steel or other durable materials.
4. Distributor Plates: Distributor plates are located on the top of the VSI crusher and are designed to distribute the material being crushed evenly across the rotor. They are typically made of high-quality steel or other durable materials.
5. Feed Tubes: Feed tubes are located on the top of the VSI crusher and are designed to direct the material being crushed into the rotor. They are typically made of high-quality steel or other durable materials.

Learn more about VSI wear parts

How to order the right crusher wear parts from our foundry?

Ordering the right crusher wear parts from a foundry is essential for ensuring optimal crusher performance and longevity. Here are some tips on how to order the right crusher wear parts from a foundry.

1. Identify the Type of Wear Part. The first step in ordering the right crusher wear parts is to identify the type of wear part needed. There are various types of crusher wear parts, such as jaws, cones, mantles, and blow bars, and each type is designed for a specific application. Understanding the type of wear part required is essential for ensuring that the correct part is ordered.
2. Determine the Material Requirements. The material requirements for crusher wear parts will depend on the type of crusher and the material being crushed. For example, if the crusher is crushing abrasive materials, wear parts made from a harder and more wear-resistant material such as manganese steel may be required. On the other hand, if the material being crushed is less abrasive, wear parts made from a less wear-resistant material such as chrome may be suitable. It’s essential to determine the material requirements for the wear part to ensure that the correct material is used.
3. Provide Technical Specifications. It’s crucial to provide the foundry with the technical specifications of the wear part required. This includes information such as the size, shape, and weight of the wear part. Providing detailed technical specifications helps the foundry to manufacture the wear part accurately and to the required standards.
4. Consider OEM vs. Aftermarket Parts. When ordering crusher wear parts, you have the option of choosing between OEM and aftermarket parts. OEM (original equipment manufacturer) parts are made by the same manufacturer that made the crusher and are generally more expensive. Aftermarket parts, on the other hand, are made by third-party manufacturers and are generally less expensive. However, it’s essential to ensure that the aftermarket part is compatible with the crusher and meets the required standards.
5. Quality Assurance. The quality of the wear parts is crucial to the crusher’s performance and longevity. When ordering wear parts from a foundry, it’s essential to ensure that the foundry has a quality assurance program in place. This includes measures such as material testing, inspection of finished parts, and quality control procedures to ensure that the wear parts meet the required standards.
6. Lead Time and Delivery. It’s important to consider lead time and delivery when ordering wear parts from a foundry. The lead time will depend on the complexity of the wear part and the foundry’s production capacity. It’s essential to plan ahead and order wear parts well in advance to avoid any delays in production. It’s also crucial to ensure that the foundry can deliver the wear parts to your location on time.
7. After-Sales Support. Finally, it’s essential to consider after-sales support when ordering wear parts from a foundry. This includes measures such as technical support and warranty support. It’s important to choose a foundry that offers comprehensive after-sales support to ensure that any issues that may arise can be resolved quickly and efficiently.

In conclusion, ordering the right crusher wear parts from our foundry requires a thorough understanding of the type of wear part needed, the material requirements, technical specifications, OEM vs. aftermarket parts, quality assurance, lead time and delivery, and after-sales support. By considering these factors, you can ensure that the correct wear part is ordered and that it meets the required standards for optimal crusher performance and longevity.
