    Metso Blow Bars

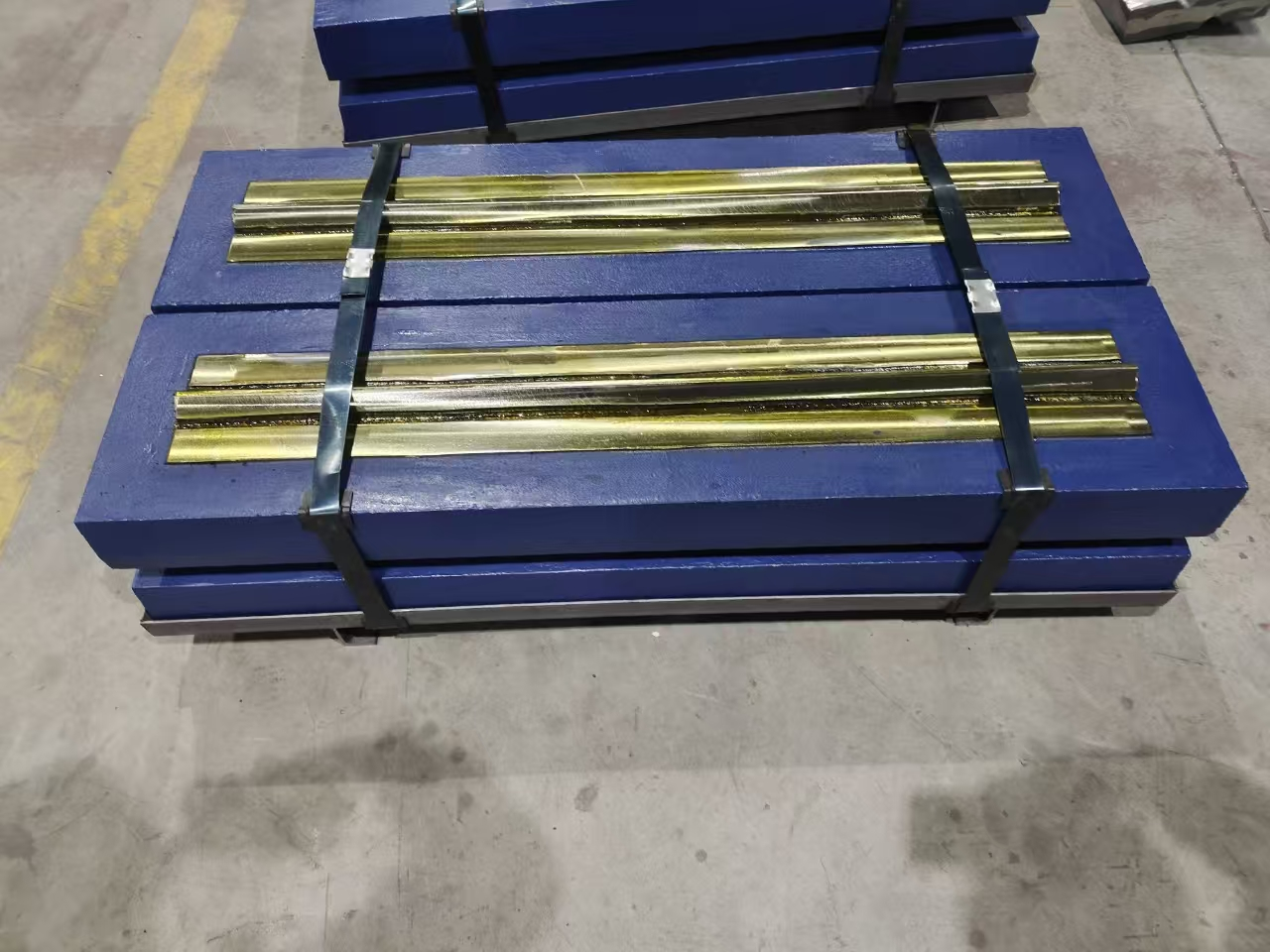

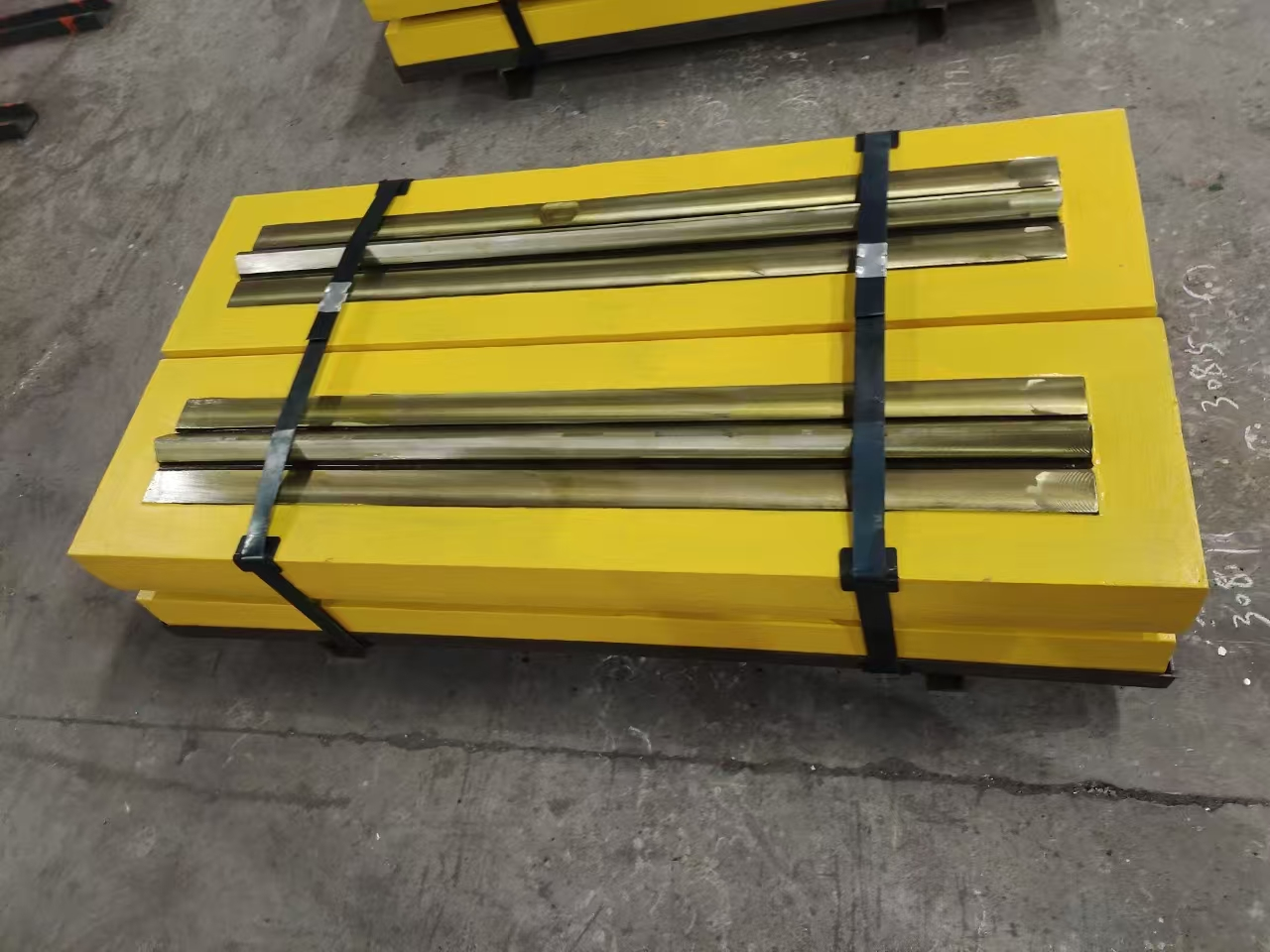

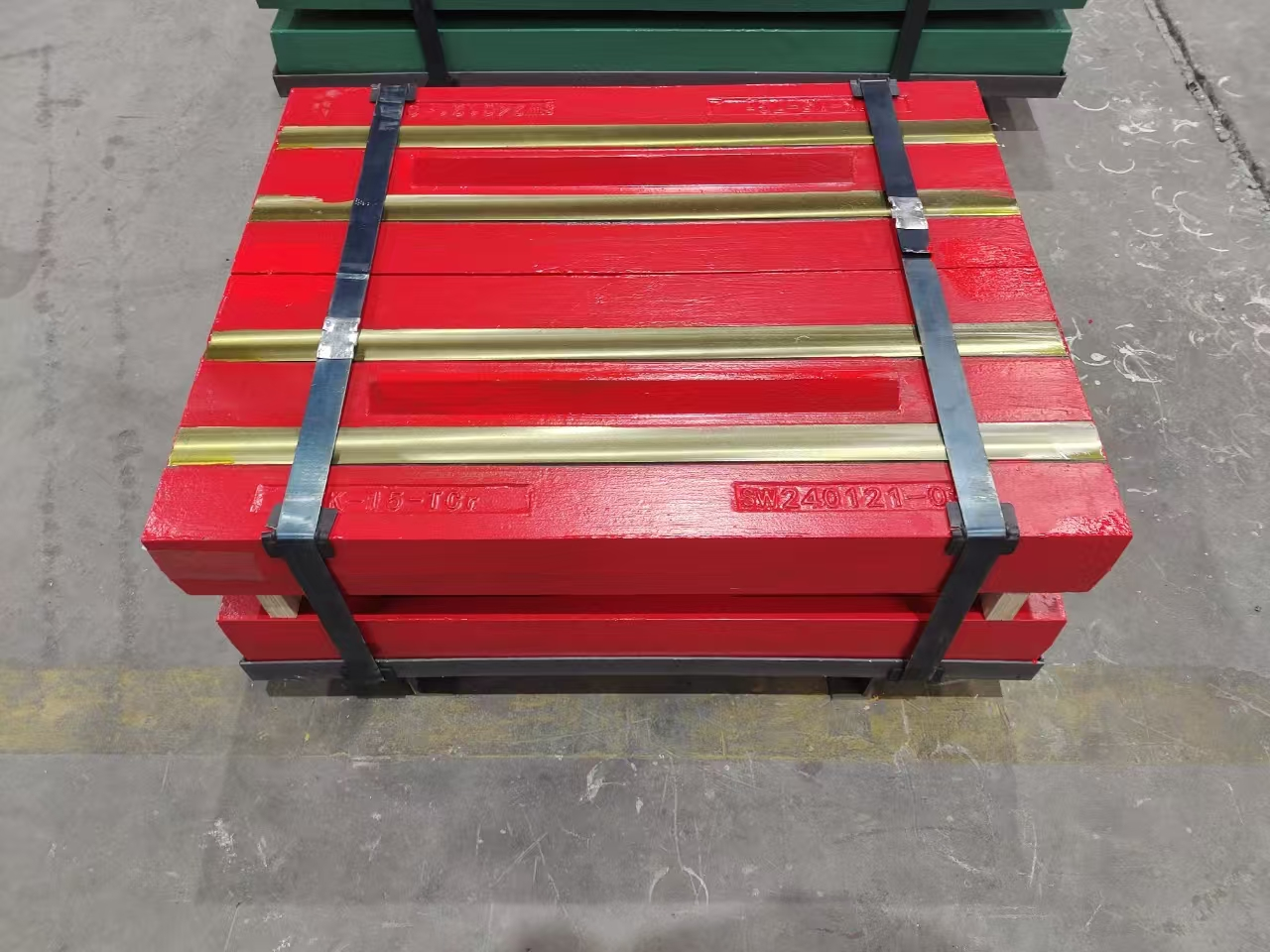

    Metso Blow Bars (1)
    Metso Blow Bars (2)
    Metso Blow Bars (3)
    Metso Blow Bars (1)

    Metso Blow Bars & Wear Parts By Qiming Casting

    Qiming Casting is a leading manufacturer of high-quality blow bars, impact plates, and side plates for Metso LT series and NP series impact crushers. We understand the importance of durability and reliability in the crushing industry, which is why we offer a range of materials to meet our customers’ specific working conditions. Our wear parts are made from high manganese steel, chromium steel, alloy steel, ceramic inlays, and titanium carbide inlays, all of which are known for their exceptional wear resistance and stability.

    Our blow bars, impact plates, and side plates are designed to withstand the harshest of crushing environments, ensuring maximum uptime and productivity for our customers. We pride ourselves on our ability to provide customized solutions that not only meet but exceed our customers’ expectations. Our team of experts works closely with each customer to understand their unique requirements and provide the best possible solution.

    At Qiming Casting, we are committed to providing our customers with the highest quality products at competitive prices. We believe that our combination of quality, service, and value sets us apart from our competitors. Contact us today to learn more about how we can help you optimize your crushing operations with our superior impact crusher parts.

    Material Selection

    The Metso blow bars and impact plates provided by Qiming Casting are made of the most suitable materials according to the different working conditions of customers.

    Code Material Basis Hardness Wear Resistance Application
    M200 Manganese Steel 200-250HB Relatively low
    • Large feed size low-abrasiveness stones  e.g. limestones.
    • Input size≥800mm
    • Can contain scrap iron
    M200TIC Manganese Steel+TIC 200-250HB Up to 100%
    increased on M200
    • Same as above
    • but where longer wear life required.
    550M Martensitic Steel 500-550HB Medium
    • Medium feed size of low to medium abrasiveness,   such as Limestones, Asphalt, Concretes, Building rubbles with steel rebars or a small quantity of unbreakable objects.
    MC Series Martensitic Steel+Ceramic 500-550HB Up to 100%
    increased on 550M
    • No iron
    • Input size more than 300mm
    • Primary crushing
    • Recycling of building rubble with low to medium iron content
    • Concrete
    • Natural stone
    MC+ Series Martensitic Steel+Ceramic 500-550HB Up to 50%
    increased on MC series
    • Same as above
    • but where longer wear life required.
    MY Series Martensitic Steel+ Ceramic(new generation) 500-550HB Up to 50%
    increased on MC+ series
    • Same as above
    • but where longer wear life required.
    650C High Chrome (Cr18,Cr20, Cr27) 600-650HB High
    • Small feed size of medium to high abrasiveness but low strength, such as Limestones, Asphalt,          Concretes, Building rubbles without steel rebars or unbreakable objects.
    CC Series High Chrome+Ceramic 600-650HB Up to 100% increased on 650C
    • Same as above
    • but where longer wear life required
    CC+ Series High Chrome+Ceramic(new generation) 600-650HB 150% increased on 650C
    • Small feed size of high abrasiveness and high           strength materials, such as gravels, granites              without unbreakable objects

    Qiming Casting’s Wear Parts Suit for Rubble Master Types:

    Impactor Item Impactor Model Approx Wt Kg Qiming’Item
    Metso Blow Bar NP-LT 1007 140 /
    Metso Blow Bar NP-LT 1110 220 QM-B0102
    Metso Blow Bar NP-LT 1213/1313 (NP13) 325 QM-B0103
    Metso Blow Bar NP-LT 1315/1415 (NP15) 445 QM-B0104
    Metso Blow Bar NP1520/1620 730 QM-B0105
    Metso Impact plate NP1007 98 /
    Metso Impact plate NP1110 140 QM-C0102
    Metso Impact plate NP1213 Std (or with bolts set) 76 QM-C0106
    Metso Impact plate NP1213 Thicker (or with bolts set) 108 QM-C0107/P-C0103
    Metso Impact plate NP1315 /
    Metso Side liners NP1213 whole set /
    Metso Side liners LT1213 whole set /
