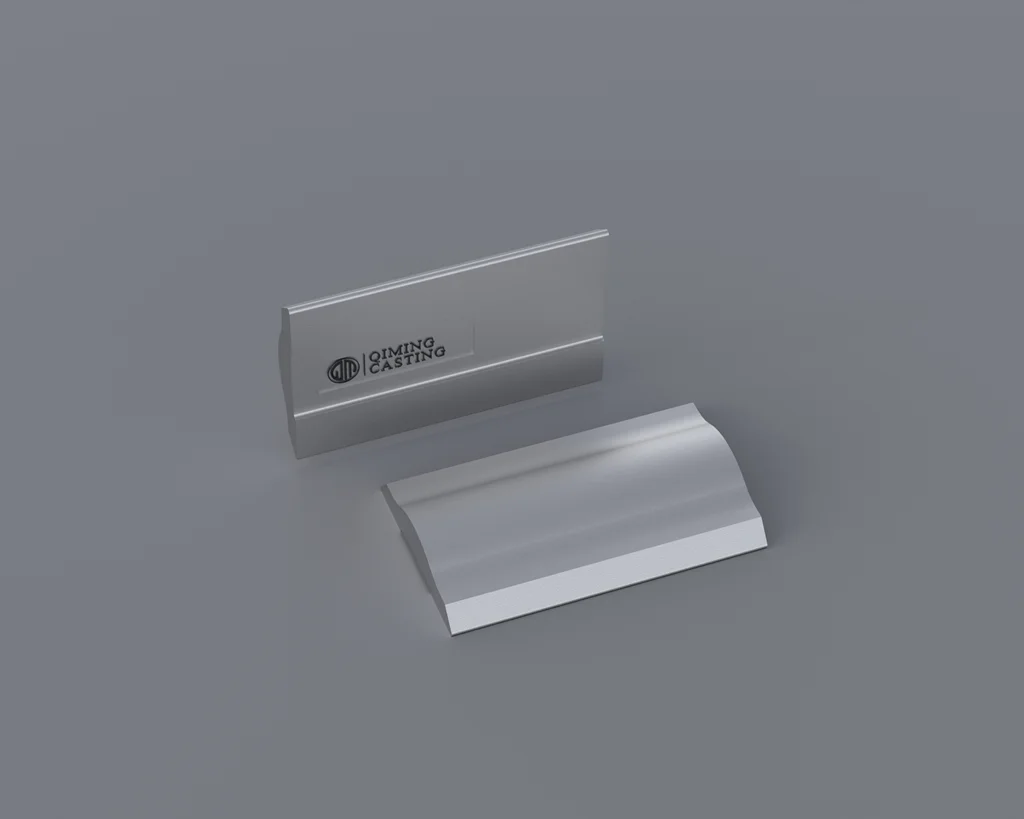

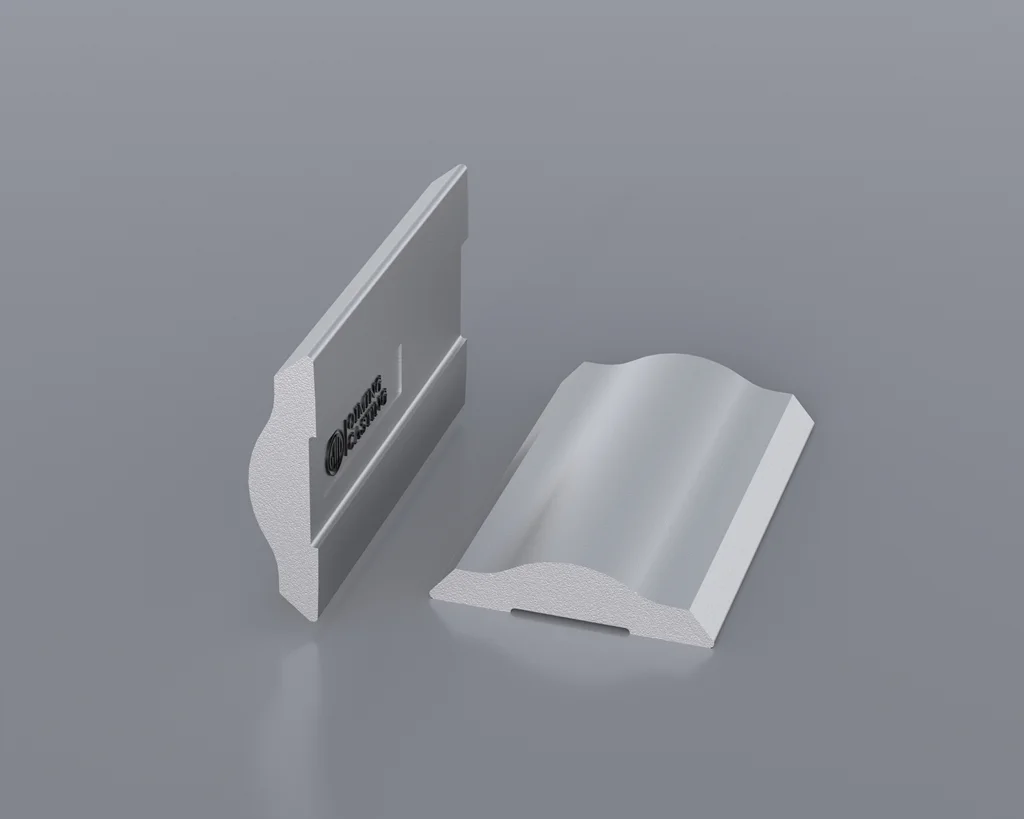

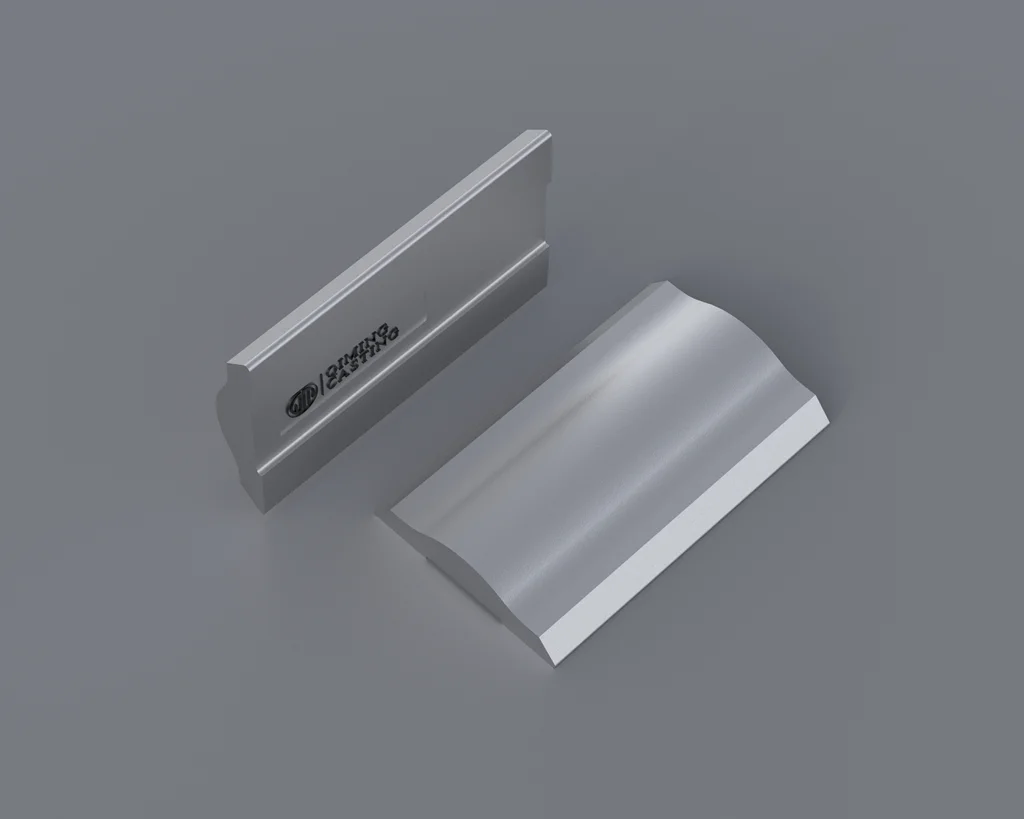

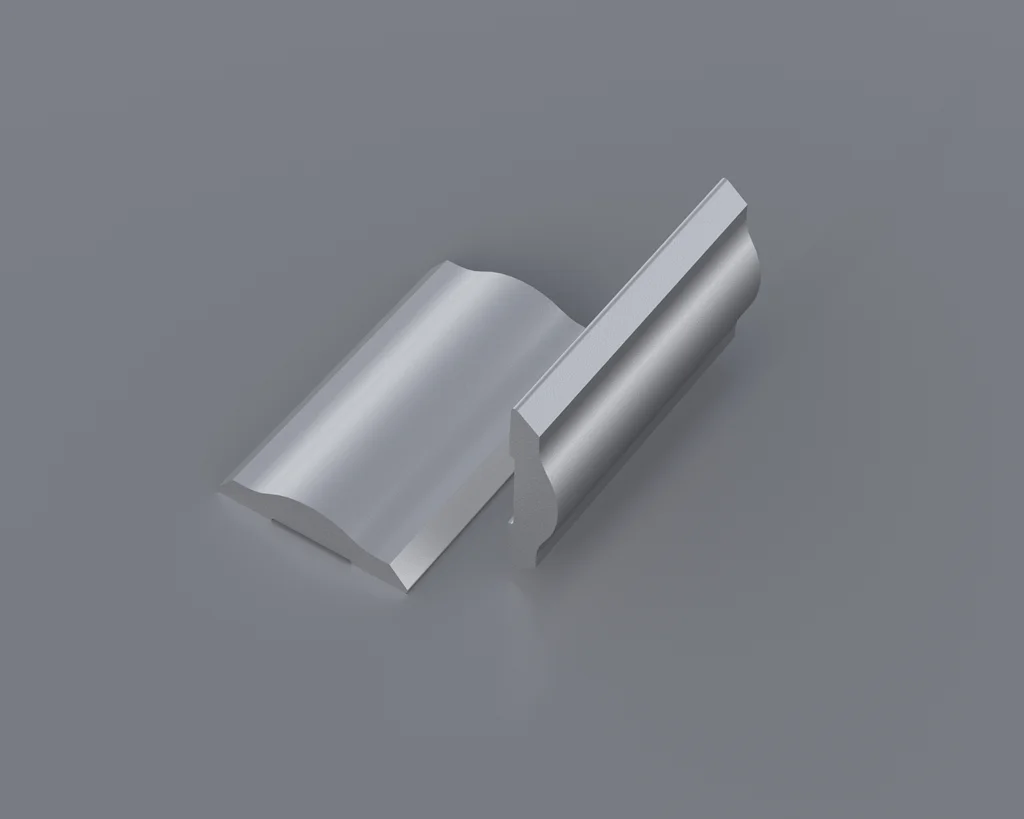

Shell Liners By Qiming Casting

Qiming Casting offers custom-manufactured ball mill shell liners made from high manganese steel and chrome-molybdenum alloy steel, tailored to your specific drawings and requirements. Our shell liners are designed to enhance the performance, durability, and efficiency of your ball milling operations.

Shell liners for ball mills are internal components that are installed inside the cylindrical shell of a ball mill. They serve several critical functions in the grinding process:

1. Protection of the Mill Shell: Shell liners protect the inner surface of the ball mill’s shell from the direct impact and abrasion caused by the grinding media (balls or pebbles) and the material being ground. Without liners, the shell would be subject to rapid wear and potential damage.
2. Enhancing Grinding Action: The design and profile of the shell liners influence the movement of the grinding media within the mill. Liners are designed to promote an optimal trajectory for the grinding media, which enhances the efficiency of the grinding process by improving the contact between the media and the material.
3. Adapting to Different Grinding Conditions: Shell liners can be manufactured from various materials and with different surface patterns to suit the specific requirements of the grinding operation. For instance, high manganese steel liners are suitable for applications involving high impact, while liners with a smoother surface are better suited for fine grinding operations.
4. Reducing Noise and Vibration: Certain types of shell liners, such as those made from rubber, can help to dampen noise and vibration generated during the grinding process, creating a more pleasant working environment.
5. Facilitating Maintenance: Shell liners are designed to be replaceable, allowing for easy maintenance and extended service life of the ball mill. When the liners become worn, they can be replaced without the need to replace the entire mill shell, which is a more cost-effective and time-efficient solution.
6. Structural Reinforcement: The installation of shell liners provides additional structural support to the mill shell, increasing its rigidity and resistance to deformation under the heavy loads and vibrations generated during operation.
