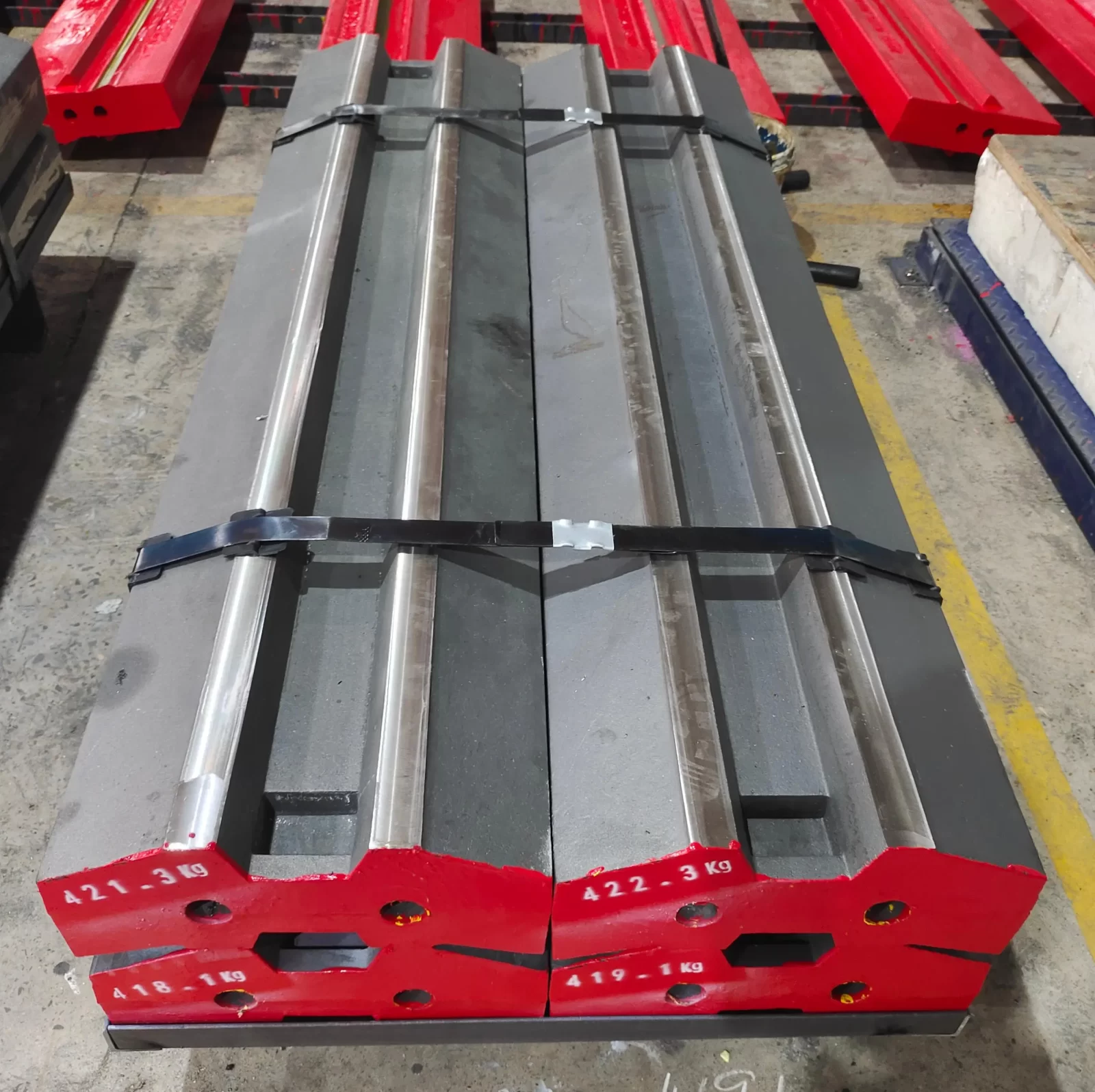

    Inertia Blow Bars By Qiming Casting

    Qiming Casting is a leading manufacturer of high-quality wear parts for the mining and aggregate industries. Our product range includes blow bars, impact plates, and side plates for Inertia mobile impact crushers. We understand the critical role these components play in the efficiency and reliability of your operations, which is why we offer a range of materials to suit your specific working conditions.

    Our blow bars are designed to withstand the harshest of conditions, featuring high abrasion resistance and stability. We offer a variety of materials, including high manganese steel, chromium steel, and alloy steel, each with its own unique properties to suit your needs. Our chromium steel blow bars, for example, offer exceptional abrasion resistance and longevity, while our high manganese steel options provide excellent impact resistance.

    In addition to our blow bars, we also produce impact plates and side plates for Inertia mobile impact crushers. These components are essential for maintaining the stability and performance of your equipment. Like our blow bars, our impact plates and side plates are available in a range of materials, including ceramic inserts and titanium carbide inserts, which provide enhanced abrasion resistance and durability.

    At Qiming Casting, we are committed to providing our customers with the best possible products and services. We understand the importance of keeping your operations running smoothly, which is why we offer a wide range of materials and custom solutions to suit your specific needs. With our extensive experience and expertise in wear part manufacturing, you can trust Qiming Casting to provide you with the highest quality products at competitive prices.

    Contact us today to learn more about our blow bars, impact plates, and side plates for Inertia mobile impact crushers, and how we can help you optimize your operations with our superior wear parts.

    Material Selection

    The Inertia blow bars and impact plates provided by Qiming Casting are made of the most suitable materials according to the different working conditions of customers.

    Code Material Basis Hardness Wear Resistance Application
    M200 Manganese Steel 200-250HB Relatively low
    • Large feed size low-abrasiveness stones  e.g. limestones.
    • Input size≥800mm
    • Can contain scrap iron
    M200TIC Manganese Steel+TIC 200-250HB Up to 100%
    increased on M200
    • Same as above
    • but where longer wear life required.
    550M Martensitic Steel 500-550HB Medium
    • Medium feed size of low to medium abrasiveness,   such as Limestones, Asphalt, Concretes, Building rubbles with steel rebars or a small quantity of unbreakable objects.
    MC Series Martensitic Steel+Ceramic 500-550HB Up to 100%
    increased on 550M
    • No iron
    • Input size more than 300mm
    • Primary crushing
    • Recycling of building rubble with low to medium iron content
    • Concrete
    • Natural stone
    MC+ Series Martensitic Steel+Ceramic 500-550HB Up to 50%
    increased on MC series
    • Same as above
    • but where longer wear life required.
    MY Series Martensitic Steel+ Ceramic(new generation) 500-550HB Up to 50%
    increased on MC+ series
    • Same as above
    • but where longer wear life required.
    650C High Chrome (Cr18,Cr20, Cr27) 600-650HB High
    • Small feed size of medium to high abrasiveness but low strength, such as Limestones, Asphalt,          Concretes, Building rubbles without steel rebars or unbreakable objects.
    CC Series High Chrome+Ceramic 600-650HB Up to 100% increased on 650C
    • Same as above
    • but where longer wear life required
    CC+ Series High Chrome+Ceramic(new generation) 600-650HB 150% increased on 650C
    • Small feed size of high abrasiveness and high           strength materials, such as gravels, granites              without unbreakable objects

    Qiming Casting’s Blow Bars Suit for Inertia Types:

    Impactor Item Impactor Model Approx Wt Kg
    Inertia Blow Bar 4048 308
    Inertia Blow Bar 5066 425
