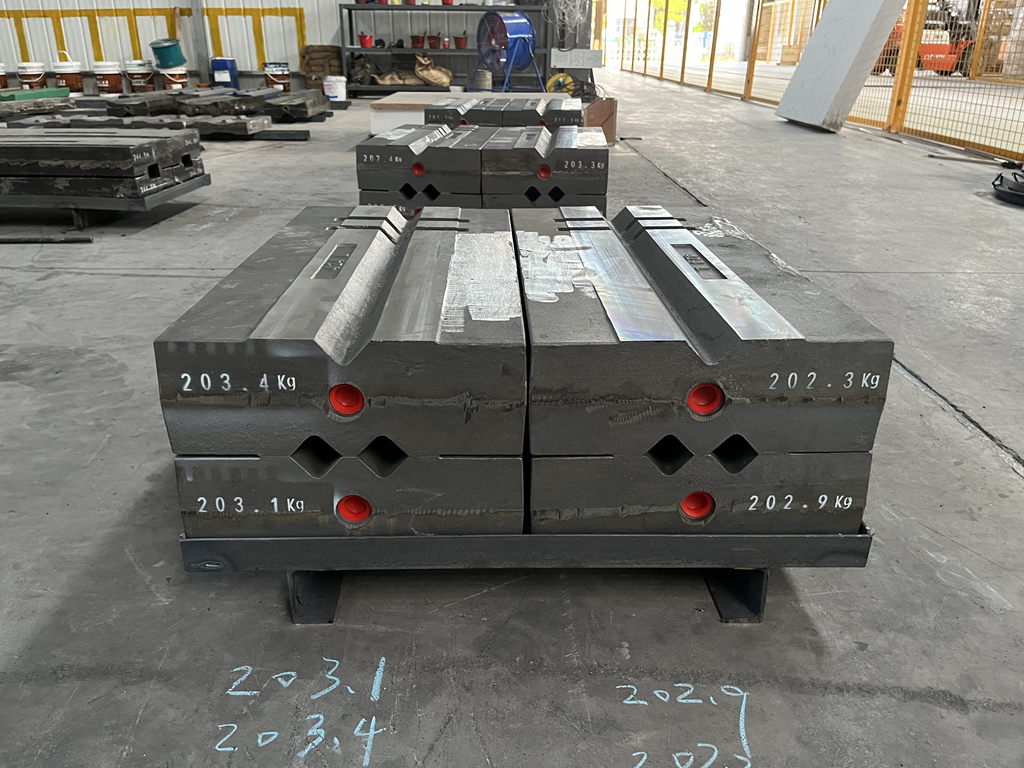

    Hazemag Blow Bars By Qiming Casting

    Qiming Casting is a leading manufacturer of high-quality wear parts for Hazemag impact crushers, including Blow Bars, Impact Plates, and Side Plates. We understand the importance of durability and reliability in the crushing industry, which is why we offer a range of materials to meet our customers’ specific working conditions. Our materials include high manganese steel, chromium steel, alloy steel, ceramic inserts, and titanium carbide inserts, each with its unique properties to enhance performance and extend the life of the parts。

    High manganese steel is known for its excellent toughness and work-hardening properties, making it ideal for applications where impact is a primary concern. Chromium steel offers improved wear resistance and hardness, while alloy steel provides a balance of strength and toughness. Ceramic inserts and titanium carbide inserts are designed for the most abrasive applications, offering exceptional wear resistance and long service life.

    Our Blow Bars, Impact Plates, and Side Plates are precision-cast using advanced manufacturing techniques and strict quality control standards. This ensures that our parts not only meet but exceed the original equipment manufacturer’s (OEM) specifications. We also offer custom solutions to meet specific customer requirements, ensuring the best possible performance and value.

    At Qiming Casting, we are committed to providing our customers with the highest quality products and exceptional service. Our wear parts for Hazemag impact crushers are designed to maximize uptime and minimize maintenance costs, helping our customers achieve their production goals efficiently and effectively. Contact us today to learn more about our products and how we can help you optimize your crushing operations.

    Material Selection

    The Hazemag blow bars and impact plates provided by Qiming Casting are made of the most suitable materials according to the different working conditions of customers.

    Code Material Basis Hardness Wear Resistance Application
    M200 Manganese Steel 200-250HB Relatively low
    • Large feed size low-abrasiveness stones  e.g. limestones.
    • Input size≥800mm
    • Can contain scrap iron
    M200TIC Manganese Steel+TIC 200-250HB Up to 100%
    increased on M200
    • Same as above
    • but where longer wear life required.
    550M Martensitic Steel 500-550HB Medium
    • Medium feed size of low to medium abrasiveness,   such as Limestones, Asphalt, Concretes, Building rubbles with steel rebars or a small quantity of unbreakable objects.
    MC Series Martensitic Steel+Ceramic 500-550HB Up to 100%
    increased on 550M
    • No iron
    • Input size more than 300mm
    • Primary crushing
    • Recycling of building rubble with low to medium iron content
    • Concrete
    • Natural stone
    MC+ Series Martensitic Steel+Ceramic 500-550HB Up to 50%
    increased on MC series
    • Same as above
    • but where longer wear life required.
    MY Series Martensitic Steel+ Ceramic(new generation) 500-550HB Up to 50%
    increased on MC+ series
    • Same as above
    • but where longer wear life required.
    650C High Chrome (Cr18,Cr20, Cr27) 600-650HB High
    • Small feed size of medium to high abrasiveness but low strength, such as Limestones, Asphalt,          Concretes, Building rubbles without steel rebars or unbreakable objects.
    CC Series High Chrome+Ceramic 600-650HB Up to 100% increased on 650C
    • Same as above
    • but where longer wear life required
    CC+ Series High Chrome+Ceramic(new generation) 600-650HB 150% increased on 650C
    • Small feed size of high abrasiveness and high           strength materials, such as gravels, granites              without unbreakable objects

    Qiming Casting’s Blow Bars Suit for Hazemag Types:

    Impactor Item Impactor Model Approx Wt Kg Qiming’Item
    Hazemag Blow bar HAZ789 /APK40 (3 grooves) 83 QM-B1210
    Hazemag Blow bar HAZ789 /APK40 (3 grooves) 83 QM-B1201
    Hazemag Blow bar HAZ789 /APK40 (2 grooves) 83 QM-B1209
    Hazemag Blow bar HAZ790/APK30/APK1006  (3 grooves) 112 QM-B1207
    Hazemag Blow bar HAZ790  (3 grooves) 112 QM-B1208
    Hazemag Blow bar HAZ790  (2 grooves) 115 QM-B1205
    Hazemag Blow bar HAZ791/APK50 (3 grooves) 148 QM-B1202
    Hazemag Blow bar HAZ791/APK50 (2 grooves) 150 QM-B1223
    Hazemag Blow bar HAZ793  (2 grooves) /M3717454 115 QM-B1216
    Hazemag Blow bar M596 9.7 QM-B1221
    Hazemag Impact plate HAZ796 90 QM-C1213
    Hazemag Impact plate HAZ797 QM-C1214
    Hazemag Impact plate HAZ853 54 QM-C1216
    Hazemag Blow bar APK105 112 QM-B8002
    Hazemag Blow bar APK1013 295 QM-B1212
    Hazemag Blow bar AP-S 0813 53 QM-B1217
    Hazemag Blow bar HAZ1013 300 /
    Hazemag Blow bar APP1013 256 QM-B0303
    Hazemag Blow bar 850A (APK60) 182 QM-B1215
    Hazemag Blow bar HPI2025 946 QM-B1213
    Hazemag Blow bar HAZ1036 270 QM-B1206
    Hazemag Blow Bar AP-PM 1822 865 /
    Hazemag Blow Bar AP-PM 2225 1300 /
    Hazemag Blow bar M1022/APS1313/AP-PH1214 420 QM-B0510/QM-B1214
    Hazemag Blow bar M0172990 237 /
    Hazemag Blow bar M0174348 275 /
    Hazemag Blow bar MOD 686 57 /
