    Hartl Blow Bars

    Hartl Blow Bars
    Hartl Blow Bars

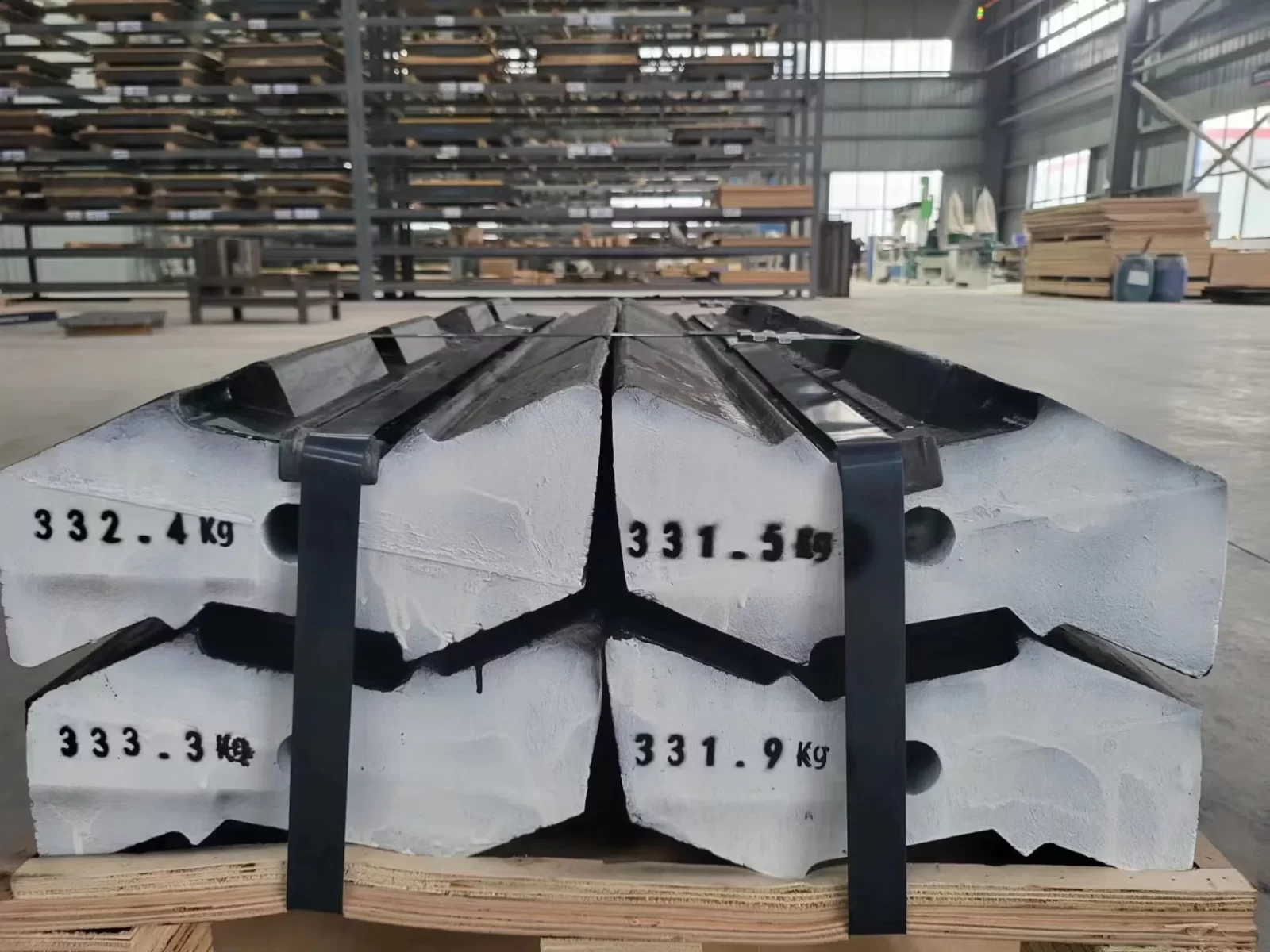

    Hartl Blow Bars By Qiming Casting

    Qiming Casting is a leading manufacturer of high-quality wear parts for Hartl impact crushers, including Blow Bars, Impact Plates, and Side Plates. We understand the importance of durability and reliability in the crushing industry, which is why we offer a range of materials to meet the specific needs of our customers’ working conditions. Our materials include High Manganese Steel, Chrome Steel, Alloy Steel, Ceramic Inserts, and Titanium Carbide Inserts, all of which are designed to provide exceptional wear resistance and stability.

    Our High Manganese Steel parts are known for their toughness and ability to withstand high impact forces, making them ideal for applications where impact is a primary concern. Chrome Steel parts, on the other hand, offer excellent resistance to abrasion and corrosion, making them well-suited for applications where material wear is a significant factor. Alloy Steel parts provide a balance of strength and toughness, while Ceramic Inserts and Titanium Carbide Inserts offer the highest level of wear resistance, making them ideal for the most demanding applications.

    At Qiming Casting, we pride ourselves on our commitment to quality and customer satisfaction. Our parts are precision-made using state-of-the-art manufacturing techniques and rigorous quality control processes. We work closely with our customers to understand their specific requirements and provide customized solutions that meet their unique needs. Our goal is to provide our customers with the best possible value by offering high-quality parts at competitive prices and providing exceptional service.

    Whether you’re looking to replace worn-out parts or upgrade your existing equipment, Qiming Casting has the expertise and experience to provide you with the right solution. Contact us today to learn more about our products and how we can help you optimize your crushing operations.

    Material Selection

    The Hartl blow bars and impact plates provided by Qiming Casting are made of the most suitable materials according to the different working conditions of customers.

    Code Material Basis Hardness Wear Resistance Application
    M200 Manganese Steel 200-250HB Relatively low
    • Large feed size low-abrasiveness stones  e.g. limestones.
    • Input size≥800mm
    • Can contain scrap iron
    M200TIC Manganese Steel+TIC 200-250HB Up to 100%
    increased on M200
    • Same as above
    • but where longer wear life required.
    550M Martensitic Steel 500-550HB Medium
    • Medium feed size of low to medium abrasiveness,   such as Limestones, Asphalt, Concretes, Building rubbles with steel rebars or a small quantity of unbreakable objects.
    MC Series Martensitic Steel+Ceramic 500-550HB Up to 100%
    increased on 550M
    • No iron
    • Input size more than 300mm
    • Primary crushing
    • Recycling of building rubble with low to medium iron content
    • Concrete
    • Natural stone
    MC+ Series Martensitic Steel+Ceramic 500-550HB Up to 50%
    increased on MC series
    • Same as above
    • but where longer wear life required.
    MY Series Martensitic Steel+ Ceramic(new generation) 500-550HB Up to 50%
    increased on MC+ series
    • Same as above
    • but where longer wear life required.
    650C High Chrome (Cr18,Cr20, Cr27) 600-650HB High
    • Small feed size of medium to high abrasiveness but low strength, such as Limestones, Asphalt,          Concretes, Building rubbles without steel rebars or unbreakable objects.
    CC Series High Chrome+Ceramic 600-650HB Up to 100% increased on 650C
    • Same as above
    • but where longer wear life required
    CC+ Series High Chrome+Ceramic(new generation) 600-650HB 150% increased on 650C
    • Small feed size of high abrasiveness and high           strength materials, such as gravels, granites              without unbreakable objects

    Qiming Casting’s Blow Bars Suit for Hartl Types:

    Impactor Item Impactor Model Approx Wt Kg Qiming’Item
    Hartl Blow bar 1060 192 QM-B0702
    Hartl Blow bar 1270 245 QM-B1403
    Hartl Blow bar 1310 355 QM-B1401
